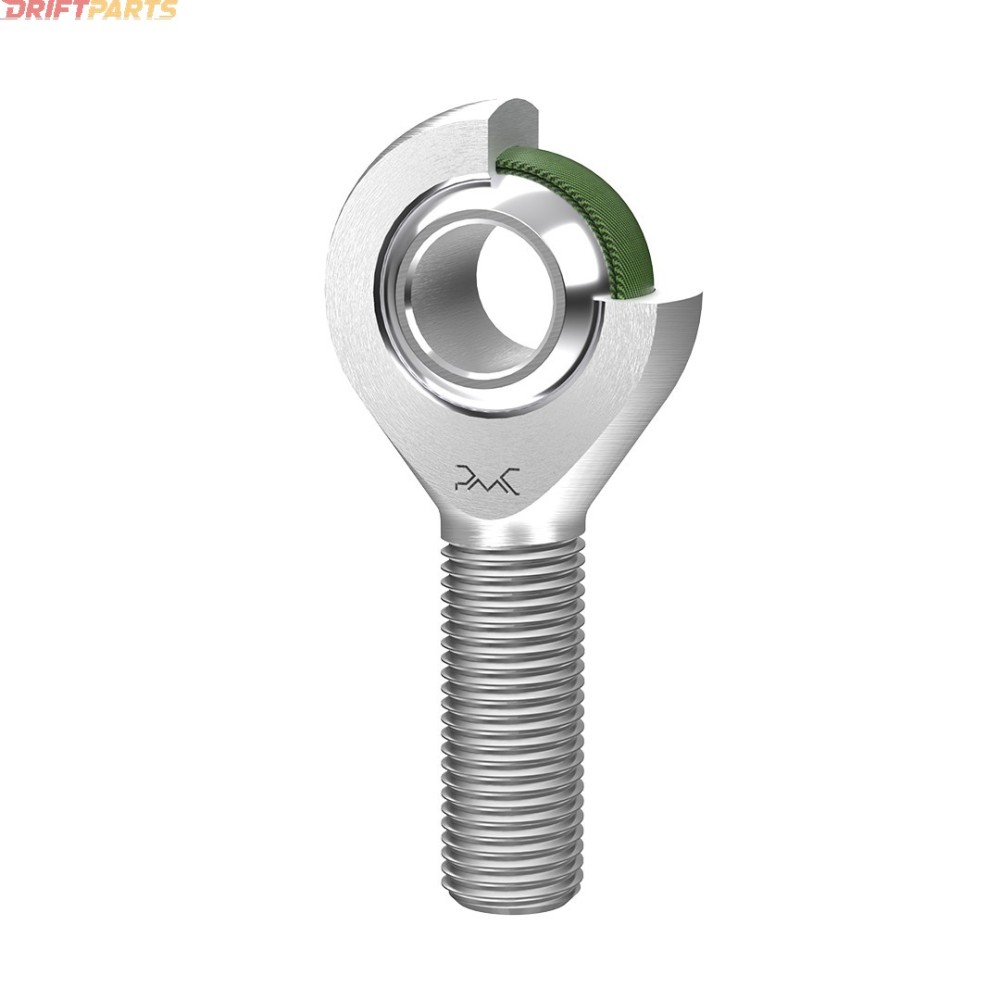

PMC Motorsport RS-Series Rod End / Uniball End - Left External Thread (Male) - M18x1.5
The PMC Motorsport RS-Series rod end is engineered for precision force transmission in multi-directional systems, accommodating rotational and angular movement. This component is integral to applications such as steering, suspension, and joint systems, where precise load transfer is crucial. Its design comprises a housing (sleeve) with a spherical joint, facilitating movement across multiple planes.
Key Features:
Maintenance-Free Uniball: Eliminates the need for rubber boots, reducing maintenance requirements.
High Load Capacity: Suitable for large directional load transmission.
Corrosion Resistance: Designed for durability in harsh environmental conditions.
Longevity: Engineered for prolonged operation under demanding conditions.
Material Specifications:
Housing: Constructed from heat-treated steel 25CrMo4 (4130, 1.7218), forged and treated with a hard chrome coating.
Bearing Bushing: Crafted from Nylon with PTFE via injection molding.
Ball: Manufactured from bearing steel 52100 (100Cr6, 1.3505, SUJ2, EN31), hardened and galvanized with a hard chrome finish.
PTFE Properties:
Low Friction: Ensures smooth operation without the need for lubrication.
High-Temperature Resistance: Operational range from -50°C to +150°C.
Chemical Resistance: Suitable for use in aggressive environments.
